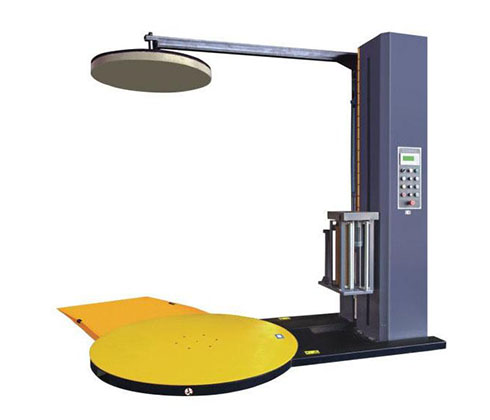

Features:
>> PLC controlled, easy wrapping program setting.
>> Both one touch automatic programs and manual run are available.
>> Film tension, turntable speed & carriage speed adjustable on panel.
>> Turntable stop start & stop.
>> Turntable home position.
>> Automatic detection of pallet height by photocell.
>> 250% power stretch, film savings.
>> Pneumatically driven top platen to hold the load while wrapping.
>> Open type carriage for easy film threading.
>> Carriage driven by dual chain system.
Specifications:
Wrap speed: 30 – 40 pallets/hour
Turntable diameter: 1500mm
Turntable speed: 3 - 15rpm
Max load weight: 2000kgs
Wrapping height: 2100mm
Turntable height: 82mm
Wrapping settings: wrap cycles /top wraps /bottom wraps /overwrap
Air source: 0.4-0.7Mpa
Turntable motor: 0.75kw
Pre-stretch motor: 0.2kw
Carriage lifter motor: 0.37kw
Power: 1PH 220VAC, 50/60Hz
Carriage speed: 5 meters/min max
Film type: stretch film thickness 17-35microns, width 450-500mm, paper core 76mm, max N.W. 18kgs
Options:
1. Turntable diameter 1650mm, 1800mm, or 2000mm
2. Wrapping height 2400mm or 2600mm
3. Access ramp for loading
4. Turntable could be M-shaped
5. Ring bearing structure turntable for extra heavy loads.
