    H40

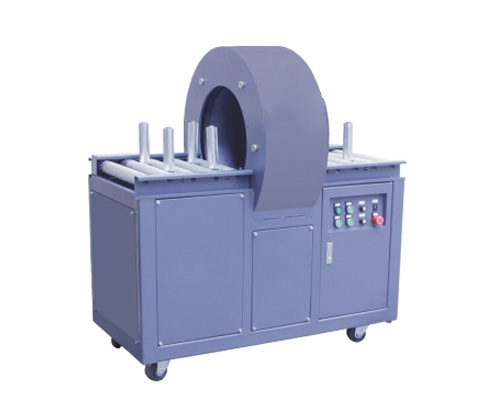

    Semi-auto Horizontal Wrapping Machine
    Category: Orbital Wrapper

H40 Horizontal Wrapping Machine is made for smaller bar type products. Machine automatically clamp and cut film. Motorized roller conveyors for products in feeding and out feeding. A press on the foot petal starts the wrapping process.

Product advantage

Ideal for stretch wrapping of long profiles such as aluminum profiles, pipes & tubes
Automatic clamp & cut film
Can be used for film banding

Product resources

The main performance parameters

Ring Diameter: 400mm.

Wrapping Size: W200 X H200mm max.

Wrapping Length: More than 700mm.

Rotation Speed: 25-50rpm variable.

Conveyor Speed: 5m/min variable.

Conveyor Length: 400mm (for infeed & outfeed)

Power: 1PH220VCA, 50Hz 20A, 1.1Kw.

Air Pressure: 0.4-0.7Mpa.

Machine Dimention: L1180 X W720 X H800.

Machine weight: 200kg.
