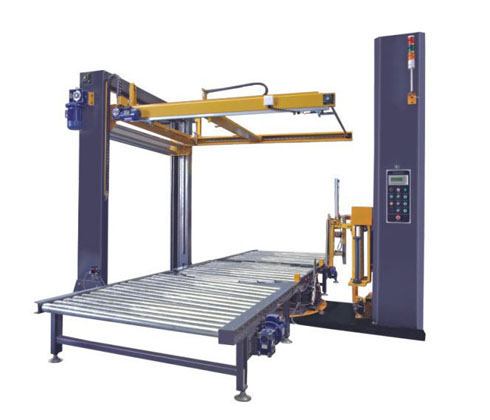

T6 + D1
Fully-Auto Pallet Wrapper + Top Sheet Dispenser
Category: Fully-Auto Pallet Wrapper
T6 Fully Auto Rotary Wrapper + D1 Top Sheet Dispenser are conveyorized machines for automated unmanned packing lines. Controlled by the same control system. pallets can be automatically wrapped and covered on the top simultaneously to be protected against dust & moisture, and achieve perfect exterior looking, This system has now been widely used to enhance work efficiency, reduce labor cost and raise packing grades, in industries such as chemicals, electric & electronic, food & beverage,
Product advantage
- Automatic film wrapping after stacking, prevent product fallen off during transport & storage
- Can do top sheet cover according to actual needs
- Heavy duty turntable to handle loads over 2000kgs
Product resources
Features:
*Two working mode choices: wrapping, or wrapping with top sheet dispensing.
* Automatic stretch film apply & cut, pneumatically driven.
* Swing ring structure turntable for a quieter operating environment and increase reliability.
*Powered pre-stretch film carriage, ratio 250%.
*Automatic wrapping according to pre-set parameters. Friendly user interface for setting wrap cycles, top/bottom cycles & film tension.
*Auto film brushing unit filed to make sure film clicking to the pallets perfectly after cutting.
MAIN PARAMETERS:
Pallet size: L(800-1200)mm X W(800-1200)mm
Wrapping Height : 2000mm/2400mm
Loading Weight : 2500kg.
Packing Speed: 30 - 45 loads/ hour.
Turntable Speed: 0-15rpm, speed variable, turntable soft start & soft sotp.
Turntable Height: 500mm.
Air Pressure: 0.4-0.7Mpa.
Cut Method: heater
Carriage Speed: 5m/min.
Top dispensing Unit Lifting Speed: 12m/min.
Top sheet Puling Speed: 12m/min
Top Sheet size: Width 1800mm, Length variable
Control system: PLC.
Power: 3PH380VAC, 50/60Hz,20A
Machine Weight: 1800kg.
